Insertable Leg Stage and Riser System

Insertable Leg Stage and Riser System

More Choices for Easier Space Customization

The SICO® Insertable Leg Stage & Riser system creates an affordable, easy-to-use solution for tiered rehearsal room or performance stage risers. You get the flexibility of rectangular, square or curved tiered riser configurations for bands or choirs, or as a single-height elevated platform. For ultimate customization, tiered riser configurations are assembled using varying insertable leg heights and various pie-shaped deck modules.

Versatile Stage Deck Options

Straight deck sections are available in 6′ or 8′ lengths. Add angled decks to create a multitude of stage configurations. Pick from your choice of 3′ (91 cm) or 4′ (122 cm) deck depths. We recommend a 3′ (91 cm) depth for choral rooms, and a 4′ (122 cm) depth for instrumental rehearsal areas that require extra room for music stands and walking space per level. And, you can build 3- or 4-level tiers combining rectangular and pie-shaped decks to create different eye-catching configurations.

Insertable Legs Available in a Variety of Increments

By using insertable legs, you have more height choices to allow for a greater number of occupants or changes in location. Purchase the leg height options that you need — in 6″ (15 cm) or 8″ (20 cm) increments. SICO® insertable legs are available in heights of 6″, 8″, 12″, 16″, 18″, and 24″ (15 cm, 20 cm, 30 cm, 40 cm, 46 cm and 61 cm), allowing you to configure the riser set that best meets your performance demands.

Product Specifications

Structural Decks
Dimensions: 3′ x 8′ or 4′ x 8′ straight structural stage deck sizes. 3′ x 6′ and 4′ x 6′ sizes available per special request. Pie-angled structural decks used for up to four tier curved riser configurations are also available in a variety of sizes.

Insertable Legs

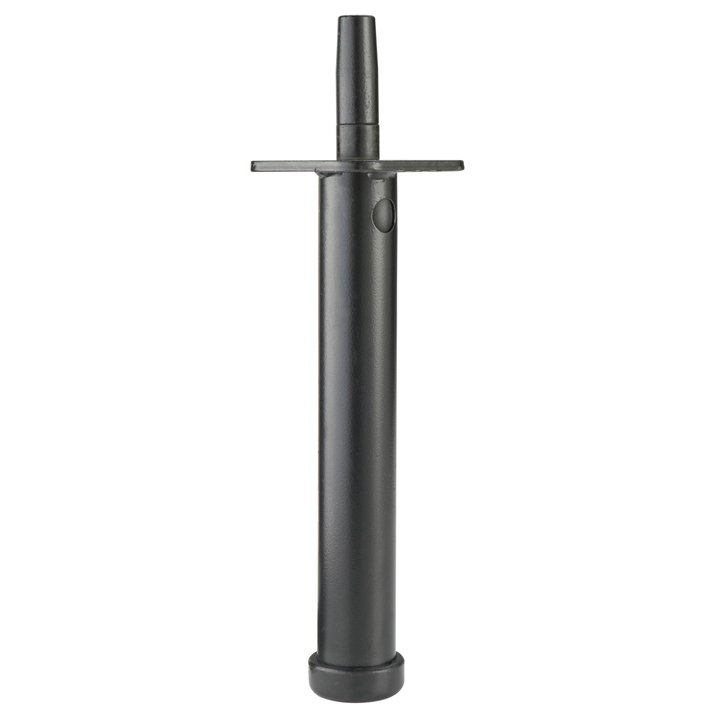

Stage decks are supported in place by insertable leg pins that provide the following heights: 6″ increments up to 24″ high – 6″, 12″, 18″ and 24″ (15cm, 30cm, 46cm, and 61cm) 8″ increments up to 32″ high – 8″, 16″, 24″ and 32″ (20cm, 40cm, 61cm and 81cm)

Leg Pins

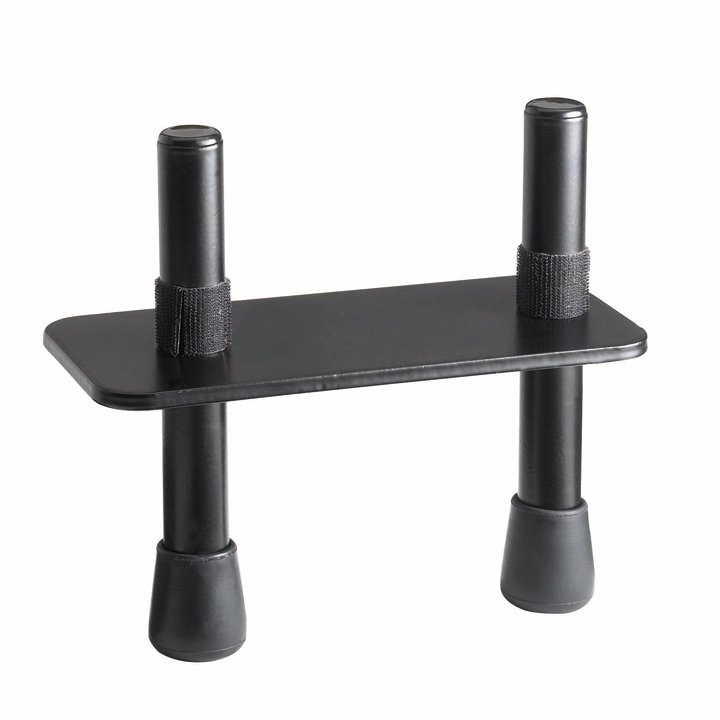

Available in these leg pin configurations: Single Height Pin Single Height Dual Pin Single Height Quad Pin 2-Height Dual Pin 2-Height Quad Pin


Chair/Table Stops Available in 3, 4, 5, 6 and 8 feet widths. All steel construction.

Drapes Single Length Drapes come in standard lengths of: 6, 8, 12, 16, 24, 32 and 40 inches. Multi-Length Drapes come in standard lengths of: 12″-18″, 16″-24″, 16″-32″, 18″-24″-30″, 24″-30″-36″, 24″-32″, 24″-32″-40″, 30″-36″-42″, 32″-40″, 32″-40″-48″, 32″-48″, 36″-54″, 42-60″, 48″-56″-64″-72″ and 48″-72″.

Ramps Width: 4′ (122 cm); Incline: 1″ per foot (8.3 cm)

Guardrails Standard widths of 3′, 4′, 6′ and 8′; Standard heights are 28″ and 42″. Additional sizes are available if required.

Stage Steps Stage steps allow access to stages from ground level. Articulating or fixed units available in multiple step configurations.

Guardrail Covers Guardrail covers help bring the audiences attention to the staging area while concealing objects located behind the stage. Guardrail covers can be professionally imprinted with the logo of your facility or your frequent customers. Available in the following standard sizes: 3′ W x 42″ L 4′ W x 42″ L 6′ W x 42″ L 8′ W x 42″ L 2’9″ W x 42″ L

Stage Backdrops When you want to add a finishing touch, accent the aesthetic, or shield the performers until curtain-time… a SICO® backdrop is the practical solution. They give the unit a very finished, professional look.

Backdrop Drapes Available in the following standard sizes: 4′ W x 10′ L 6′ W x 10′ L 8′ W x 10′ L 4′ W x 12′ L 6′ W x 12′ L 8′ W x 12′ L

Stage Transport Caddies We offer transport caddies for easy mobility with all our portable stages and stage accessories such as draperies, enclosure panels, guardrails, chair/table stops, crowd barriers, guardrail covers, stage backdrops, and stage ramps.
